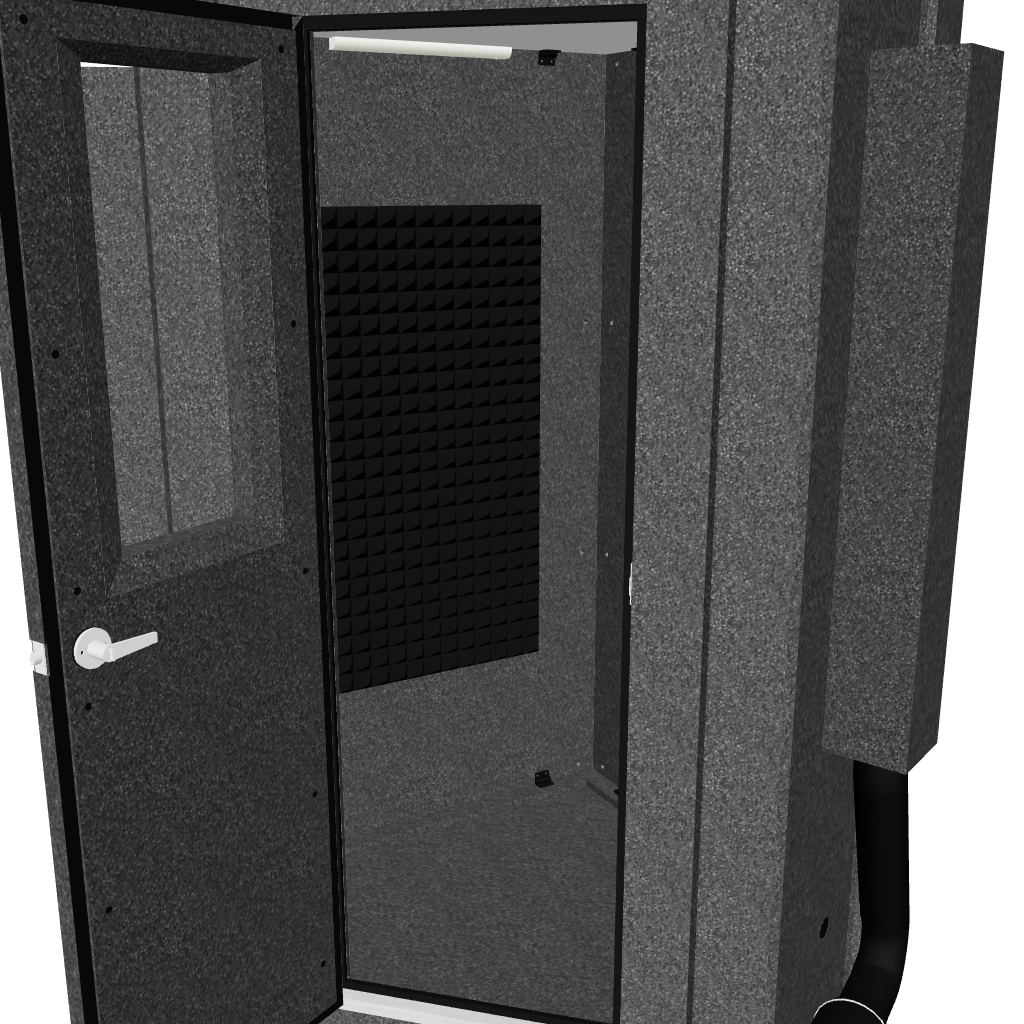

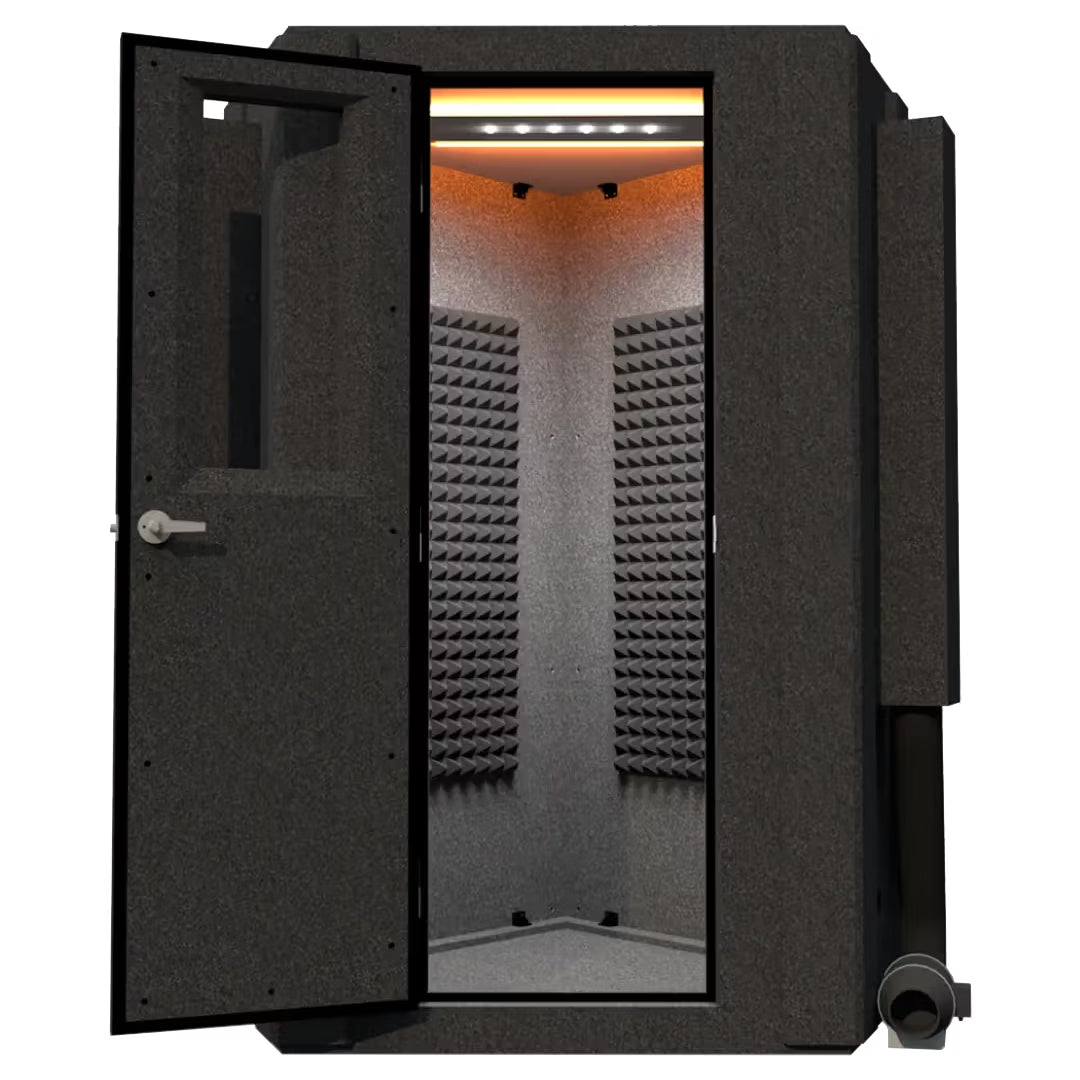

Interior view of the WhisperRoom MDL 127 LP S single-wall diamond-shaped soundproof booth, shown with the door open, acoustic foam panels installed on the angled walls, and overhead LED lighting.

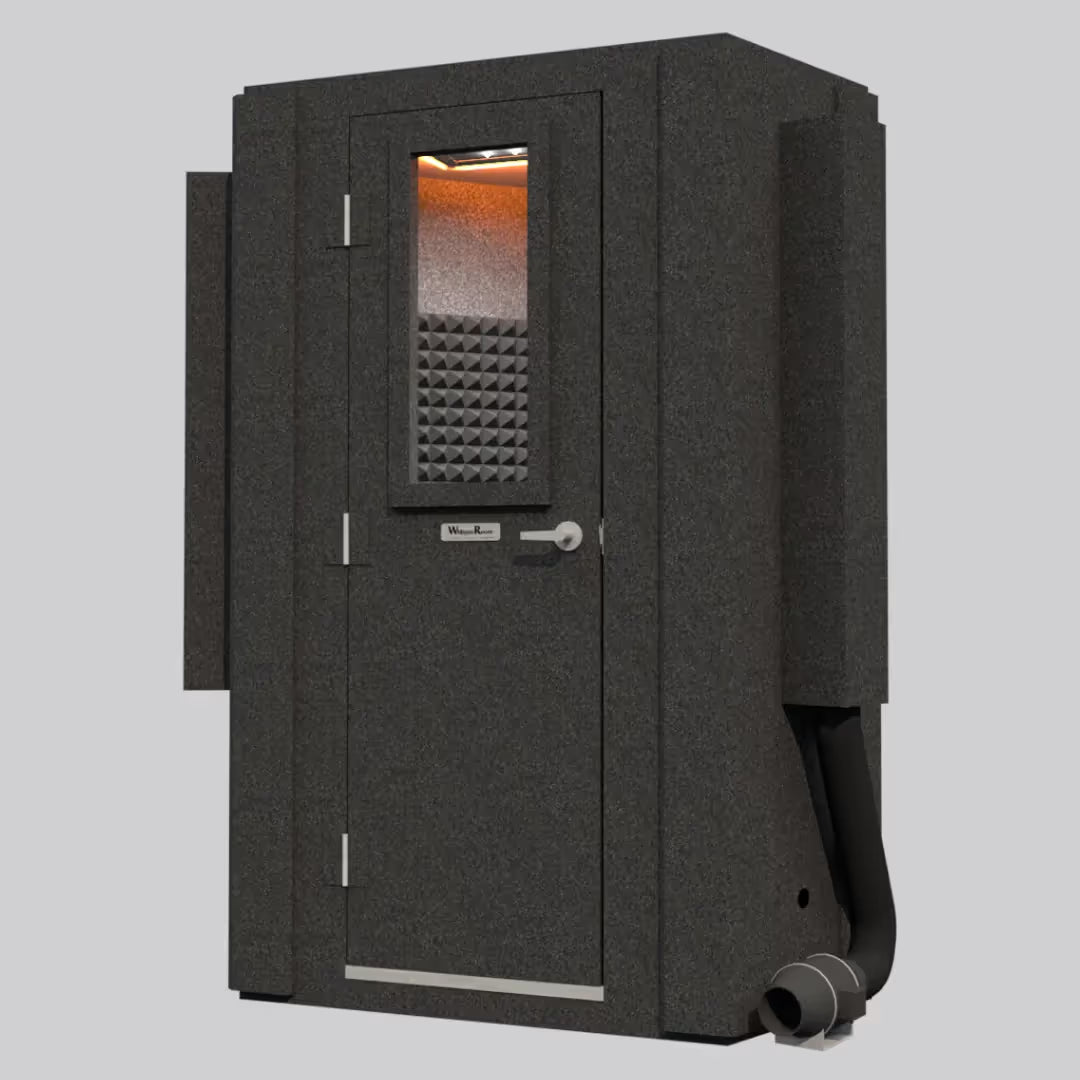

Exterior view of the WhisperRoom MDL 127 LP S single-wall diamond-shaped soundproof booth, showing the compact low-profile design, door window, and integrated ventilation system.

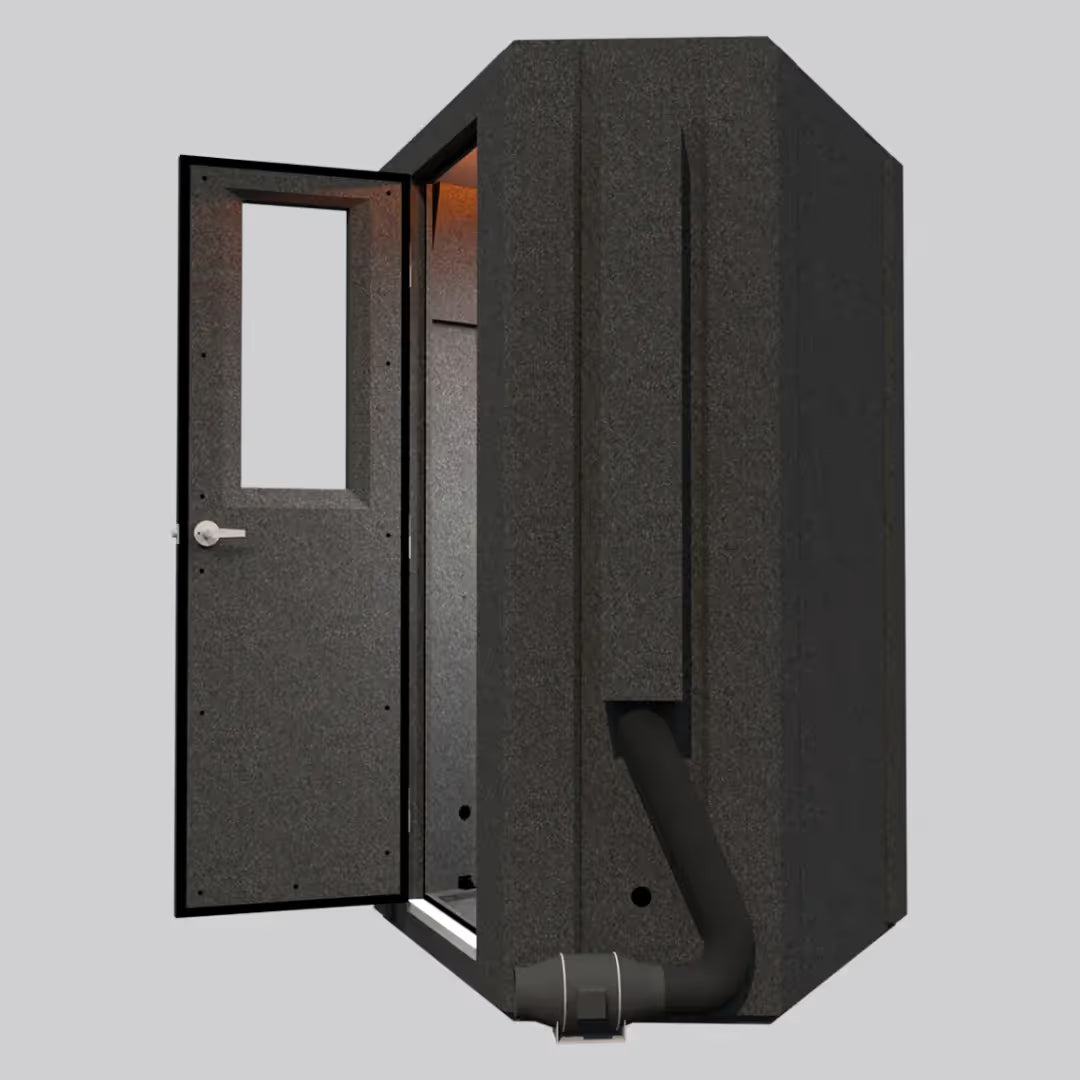

Angled side view of the WhisperRoom MDL 127 LP S soundproof booth with open door, showing the diamond-shaped back panels, integrated ventilation system, and corner-friendly design for tight or irregular rooms.

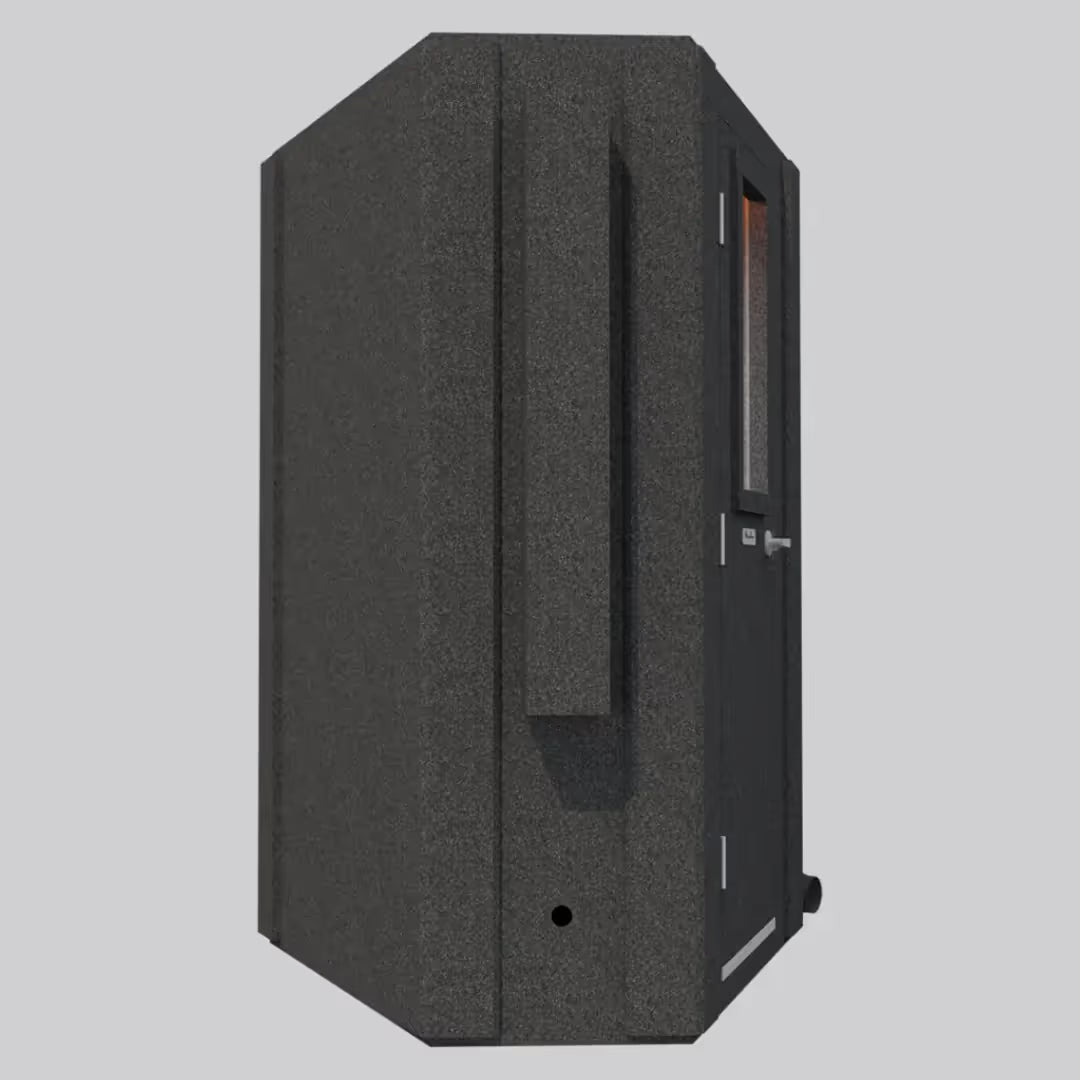

Rear and side view of the WhisperRoom MDL 127 LP S diamond-shaped soundproof booth, showing the angled corner design and exterior ventilation components.

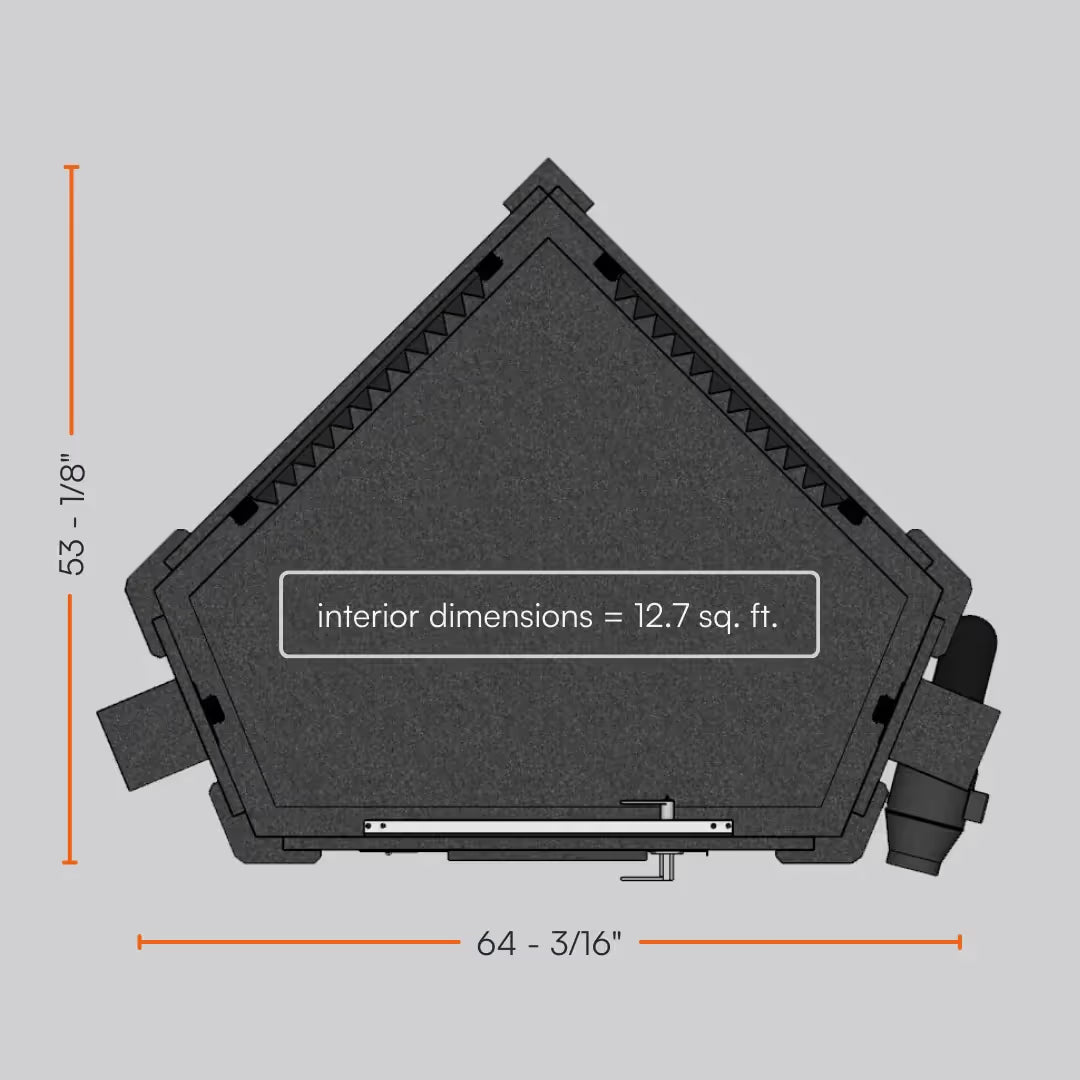

Top-down diagram of the WhisperRoom MDL 127 LP S showing its diamond-shaped floor plan with 12.7 square feet of interior space, exterior dimensions labeled for corner and tight-space placement.

MDL 127 LP S

$6,635.00
$6,635.00
Sold out
Shipping calculated at checkout.
Request a Quote
DETAILS

The MDL 127 LP S is a compact, single-wall WhisperRoom® booth designed with a unique diamond-shaped footprint that fits comfortably into corners, tight rooms, and small apartments where traditional rectangular booths may not fit. Its angled interior improves acoustic response by reducing parallel surfaces, helping create a naturally controlled and balanced sound environment.

It is a practical solution for voice recording, podcasting, content creation, private conversations, instrumentation, or any application where controlled sound is needed in a limited amount of floor space.

WhisperRoom booths have been used in thousands of professional, residential, and institutional settings for more than three decades, offering proven reliability and long-term acoustic performance.

The MDL 127 LP S is ideal for users who need real sound isolation in a smaller footprint, especially when fitting a booth into a corner, studio apartment, home office, or other space-restricted environment.

Key Features

  • Unique diamond-shaped footprint optimized for corners and tight spaces

  • Single-wall isolation suitable for environments requiring moderate sound control

  • Compact layout designed for apartments, offices, home studios, and mobile setups

  • Angled interior geometry helps minimize standing waves and improves acoustic clarity

  • Modular panel system allows placement flexibility

  • Upgradeable to an Enhanced (double-wall) configuration for higher isolation

  • Compatible with optional accessories for lighting, acoustic treatment, and workstation use

  • Non-permanent modular construction is easy to disassemble, relocate, or reconfigure

  • Straightforward assembly with individually boxed components

  • Integrated ventilation system maintains airflow during extended sessions

  • Two cable passages for clean and flexible equipment routing

  • Includes two 2 ft by 4 ft acoustic foam sheets for initial interior treatment

Specifications

Feature Detail
Exterior Dimensions 5'2" × 4'6" × 6'11"
Interior Dimensions 12.7 sq ft
Weight 709 lbs
Door Window 12" × 30"
Ventilation Systems 1
Cable Passages 2
Included Acoustic Treatment (2) 2' × 4' sheets
Floor Space 12.7 sq ft
Ventilation Clearance Ventilation adds approximately 5.5"

Shipping and Assembly

All components are shipped individually boxed for easier handling and placement. Most orders are processed and ready to ship within 48 hours. Freight charges are calculated during checkout. The booth assembles with standard tools and is designed to be set up in a short period of time.

Important Notes

Some photos show optional accessories such as interior lighting or additional window configurations. These items are not included in the base model.
Manufactured in the USA.
